使 用 說 明 書

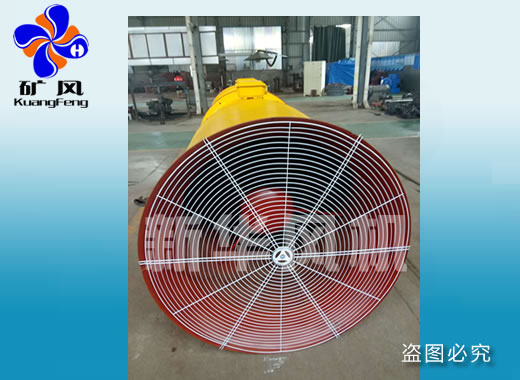

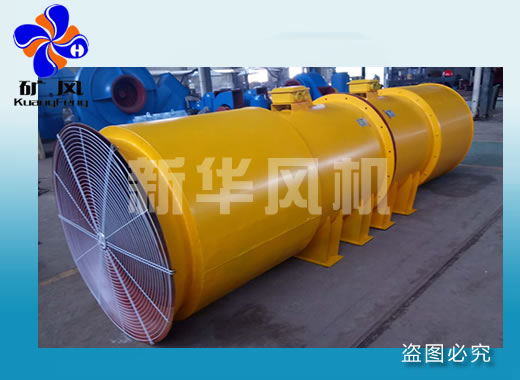

SDF系列對旋隧道軸流局部通風機，是由淄博新華風機有限公司在總結國內現有對旋式軸流局扇結構與技術性能的基礎上進行研制、并生產新一代用途廣泛的新型節能局部通風機。該產品具有結構合理、規格齊全、效率高、節能效果明顯、噪音低、送風距離遠等特點。根據不同的通風阻力要求，即可整機使用又可分級使用，從而減少通風電耗、節約能源。巷道長度在2000m以內可不移動風機正常送風，減少了工人的勞動強度，節約通風時間，是煤礦井下局部通風的理想設備。同時，它亦可用于冶金、有色、黃金、化工、造船和陶瓷工業等高壓通風場合。其結構特征為礦用隔爆型、對旋、消聲、軸流式。
主要用途及適用范圍
本產品主要用于井下作壓入式局部通風機，適用于采掘工作面用各種硐室的局部通風場合。同時，也適用于其它礦山的局部通風場合及各種隧道通風。
SDF系列對旋隧道軸流局部通風機技術性能參數表
|
機號 |
轉速r/min |
風量m3/min |
全壓Pa |
電動機型號 |
配用功率kW |
額定電壓(V) |
單臺電機 額定電流(A) |
|
№4.0 |
2900 |
136～89 |
256～2050 |
YBF90L-2 |
2×2.2 |
420 |
4.85/2.79 |
|
150～100 |
325～2500 |
YBF100L-2 |
2×3 |
420 |
6.4/3.7 |
||
|
165～109 |
375～3040 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
||
|
№5.0 |
2900 |
217～145 |
275～2060 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
|
240～161 |
325～2540 |
YBF132S1-2 |
2×5.5 |
420 |
11.1/6.4/3.7 |
||
|
266～178 |
400～3155 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
||
|
№5.6 |
2900 |
286～188 |
275～2850 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
|
324～215 |
375～3690 |
YBF160M1-2 |
2×11 |
420 |
21.6/12.6/7.2 |
||
|
358～238 |
440～4560 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
||
|
№6.3 |
2900 |
410～237 |
400～4775 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
|
442～256 |
460～5475 |
YBF160L-2 |
2×18.5 |
420 |
35.5/20.5/11.8 |
||
|
468～274 |
525～6125 |
YBF180M-2 |
2×22 |
420 |
41.0/24.4/13.67 |
||
|
518～318 |
640～7310 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
||
|
№7.1 |
2900 |
608～352 |
523～6228 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
|
652～377 |
602～7163 |
YBF200L2-2 |
2×37 |
420 |
67.9/40.3/22.6 |
||
|
696～402 |
686～8161 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
||
|
№8.0 |
2900 |
817～473 |
605～7200 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
|
874～506 |
692～8230 |
YBF250M-2 |
2×55 |
420 |
102.6/59.3/34.3 |
||
|
970～560 |
850～9950 |
YBF2-280S-2 |
2×75 |
420 |
134/77/44.2 |
||
|
№9.0 |
1450 |
831～480 |
394～4710 |
YBF200-4 |
2×30 |
420 |
56.8/32.8/19.0 |
|
890～520 |
450～5120 |
YBF2-225S-4 |
2×37 |
420 |
70.0/40.0/23.2 |
||
|
950～550 |
520～6170 |
YBF2-225M-4 |
2×45 |
420 |
85.0/50.0/29.0 |
||
|
№10.0 |
1450 |
1171～677 |
514～6131 |
YBF250M-4 |
2×55 |
420 |
102.7/59.2/34.3 |
|
1300～750 |
630～7540 |
YBF2-280S-4 |
2×75 |
420 |
140/81.0/47.0 |
||
|
1380～800 |
710～8520 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
||
|
№11.2 |
1450 |
1650～950 |
650～7690 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
|
1770～1020 |
750～8790 |
YBF2-315S-4 |
2×110 |
420 |
201/116/67.2 |
||
|
1880～1090 |
850～9930 |
YBF2-315M-4 |
2×132 |
420 |
240/139/80.5 |
The next book in that
SDF series Push-rotating axial local fan, is from Zibo Xinhua fan limited review of domestic existing contra-rotating axial flow fan structure and technical performance on the basis of the development, and the production of a new generation of wide use of new energy-saving ventilating machine local. The product has the advantages of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise, air distance and so on. According to the different ventilation resistance requirements, can the use can be graded using, thereby reducing ventilation power consumption, energy saving. Tunnel length within2000mcan not move the fan normal air supply, reduce the labor intensity of the workers, saving ventilation time, is ideal equipment for coal mine local ventilation in mine. At the same time, it can also be used in metallurgy, nonferrous metals, gold, chemical industry, shipbuilding and ceramic industry and other high pressure ventilating occasion. The structure characteristics of mining flameproof, counter-rotating, muffler, axial flow.
The main purpose and scope
The products are mainly used in underground press type ventilation machine, suitable for mining work face with a variety of chamber of local ventilation. At the same time, also applies to other mine local ventilation occasion and all kinds of tunnel ventilation.
SDF series Push-rotating axial flow ventilating machine local technical performance parameters table
|
Machine number
|
SPEED r/min |
Air volume m3/min |
Total pressure Pa |
MODEL |
Matched power kW |
Rated voltage (V) |
The single motor Rated current (A) |
|
№4.0 |
2900 |
136～89 |
256～2050 |
YBF90L-2 |
2×2.2 |
420 |
4.85/2.79 |
|
150～100 |
325～2500 |
YBF100L-2 |
2×3 |
420 |
6.4/3.7 |
||
|
165～109 |
375～3040 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
||
|
№5.0 |
2900 |
217～145 |
275～2060 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
|
240～161 |
325～2540 |
YBF132S1-2 |
2×5.5 |
420 |
11.1/6.4/3.7 |
||
|
266～178 |
400～3155 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
||
|
№5.6 |
2900 |
286～188 |
275～2850 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
|
324～215 |
375～3690 |
YBF160M1-2 |
2×11 |
420 |
21.6/12.6/7.2 |
||
|
358～238 |
440～4560 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
||
|
№6.3 |
2900 |
410～237 |
400～4775 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
|
442～256 |
460～5475 |
YBF160L-2 |
2×18.5 |
420 |
35.5/20.5/11.8 |
||
|
468～274 |
525～6125 |
YBF180M-2 |
2×22 |
420 |
41.0/24.4/13.67 |
||
|
518～318 |
640～7310 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
||
|
№7.1 |
2900 |
608～352 |
523～6228 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
|
652～377 |
602～7163 |
YBF200L2-2 |
2×37 |
420 |
67.9/40.3/22.6 |
||
|
696～402 |
686～8161 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
||
|
№8.0 |
2900 |
817～473 |
605～7200 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
|
874～506 |
692～8230 |
YBF250M-2 |
2×55 |
420 |
102.6/59.3/34.3 |
||
|
970～560 |
850～9950 |
YBF2-280S-2 |
2×75 |
420 |
134/77/44.2 |
||
|
№9.0 |
1450 |
831～480 |
394～4710 |
YBF200-4 |
2×30 |
420 |
56.8/32.8/19.0 |
|
890～520 |
450～5120 |
YBF2-225S-4 |
2×37 |
420 |
70.0/40.0/23.2 |
||
|
950～550 |
520～6170 |
YBF2-225M-4 |
2×45 |
420 |
85.0/50.0/29.0 |
||
|
№10.0 |
1450 |
1171～677 |
514～6131 |
YBF250M-4 |
2×55 |
420 |
102.7/59.2/34.3 |
|
1300～750 |
630～7540 |
YBF2-280S-4 |
2×75 |
420 |
140/81.0/47.0 |
||
|
1380～800 |
710～8520 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
||
|
№11.2 |
1450 |
1650～950 |
650～7690 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
|
1770～1020 |
750～8790 |
YBF2-315S-4 |
2×110 |
420 |
201/116/67.2 |
||
|
1880～1090 |
850～9930 |
YBF2-315M-4 |
2×132 |
420 |
240/139/80.5 |
